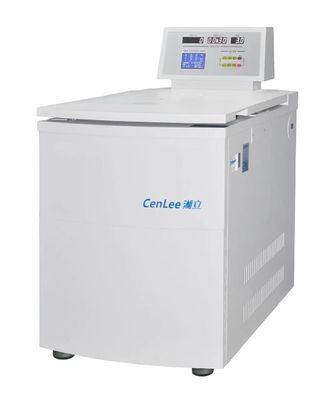

CFL6R Floor Type Large Capacity Refrigerated Centrifuge with Touch Panel and Frequency Converted Motor

Name: CFL6R Floor Type Large Capacity Refrigerated Centrifuge with Touch Panel and Frequency Converted Motor
Brand: Changsha CenLee Technology Co., Ltd,
SKU: CFL6R
Price: 50,000,001.00 USD
Availability: InStock

Marka Adı:	Cenlee
Model Numarası:	CFL6R
Adedi:	1

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

Hunan, Çin

Maksimum Hız:

6000r/dakika

Maksimum Kapasite:

6000ml

Maksimum RCF:

6680×g

Hız Doğruluğu:

±20r/min

Sıcaklık Aralığı:

-20 ℃ ~+40 ℃

Sıcaklık Doğruluğu:

±1°C

Güç:

5.5kW

Güç Kaynağı:

AC 220V 50Hz20A

Makine gürültüsü:

≤65dB(A)

Boyutlar:

830×720×1250mm

Net ağırlığı:

268kg

Motorlu Sürücü:

Frekans konvertörlü motor

Hızlanma/Yavaşlama süresi:

Özelleştirilebilir

Zamanlama Aralığı:

0-999dk

rotor kapasitesi:

6×300ml, 6×500ml, 6×1000ml

Vurgulamak:

Floor Type Refrigerated Centrifuge

Touch Panel Laboratory Centrifuge

Frequency Converted Motor Blood Bank Centrifuge

Ürün Tanımı

CFL6R Floor Type Large Capacity Refrigerator Laboratory Centrifuge Machine

This centrifuge is widely used in clinical medicine, biochemistry, immunology, genetic engineering, and other fields. It serves as a conventional instrument for rapid centrifugation of small volume samples in laboratories such as scientific research institutions and public hospitals.

Product Advantages

Flexible anti-friction system reduces wind resistance and accelerates time to maximum speed
Eco-friendly R404a refrigerant, fluorine-free high efficiency refrigeration
6L large capacity separation capability
Customizable stainless steel panel control box meeting pharmaceutical industry GMP requirements
Ideal for radioimmunoassay, biochemistry, pharmaceutical applications, and blood product separation/purification

Key Features

Touch panel with LED digital or LCD display allowing parameter adjustments during operation
High-power brushless frequency conversion motor with European imported ultra-high speed bearings
Imported compressor unit (R404a refrigerant) with precise temperature control (±1℃), low vibration, and noise
Programmable operation with 9 preset programs, 0-9 gear up/down rate, and 40 custom working modes
Pre-cooling chamber design for fast cooling and efficient operation
Dual safety door lock with comprehensive protection systems (over-temperature, over-speed, imbalance detection)
Pulse function for short centrifugation cycles

Technical Specifications

Model	CFL6R	Cryogen	R404a
Maximum speed	6000r/min	Acc/Dec time	Customizable
Maximum RCF	6680×g	Timing range	0-999min
Maximum capacity	6000ml	Power	5.5KW
Speed Accuracy	±20r/min	Power supply	AC 220V 50Hz 20A
Temperature range	-20℃~+40℃	Machine noise	≤65dB(A)
Temperature accuracy	±1℃	Dimensions	830×720×1250mm
Motor drive	Frequency converted motor	Net Weight	268kg

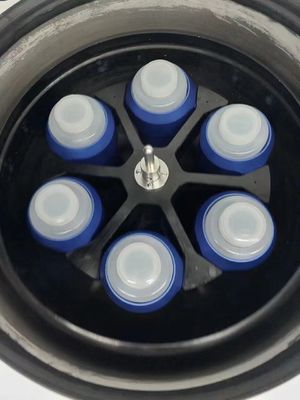

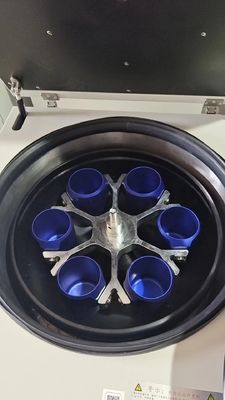

CFL6R Rotor Specifications

Rotor type	No.	Capacity	Max Speed (r/min)	Max RCF (×g)
Main machine	CFL6R		6000	6680
Angle rotor	NO.1	6×300ml	6000	5650
Angle rotor	NO.2	6×500ml	6000	6680

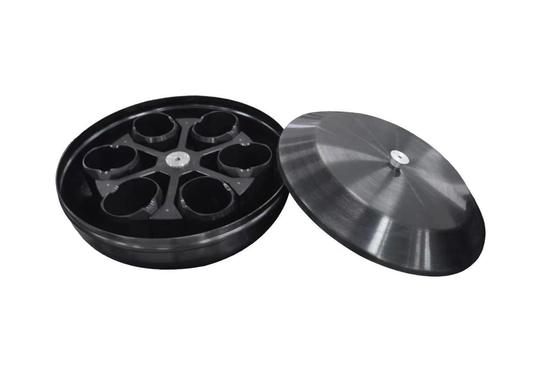

Swing out rotor	NO.3	6×1000ml	4200	5100
